•AVAILABLE FOR SOFT TO VERY HARD ROCK •VERY SMOOTH RUNNING •EXTREMELY DURABLE •LONG TOOL LIFE •AVAILABLE TO FIT ANY RIG •SIZES UP TO 64” •CAN BE CUSTOM BUILT •CENTRALIZER RINGS/RIBS AVAILABLE •TCI (CARBIDE) OR MILL (STEEL) TOOTH •SEALED BEARINGS •ANY FORMATION CUTTERS •REBUILDABLE •UNBEATABLE QUALITY Contact_Us.html

HUGE SELECTION OF HOLE OPENERS IN-STOCK

      AT OUR MIDWEST AND NORTHWEST LOCATIONS

REBUILD SERVICE

CALL FOR PRICING 580-222-4851Contact_Us.html

ANY CONNECTION(S)

BOX, PIN, PULL TAB

OR SWIVEL AVAILABLE

CARBIDE TEETH AID

WHILE SWABBING

3, 4, 5, 6, 7 AND 8+ CONES OPTIONAL

KEY FEATURES

• TCI OR MILL TOOTH

• SEALED BEARINGS

• REBUILDABLE

OVERNIGHT SHIPPING AVAILABLE ON SMALLER SIZES

STANDARD OR CUSTOM HDD HOLE OPENERS AVAILABLE

  1. •ROCK REAMERS FOR ALL ROCK TYPES

  2. •TCI OR MILL TOOTH

  3. •SEALED BEARINGS

  4. •SOFT THRU EXTREMELY HARD FORMATION AVAILABLE

FOR ALL STYLES OF REAMERS,

FROM ALL MANUFACTURERS.

HDD_Back_Reamers___Hole_Openers.html
Bolt_on_HDD_Bits_and_Blades.html
HDD_Tools_and_Tooling.html
Rok-Klaw_HDD_Rock_Bits.html
Qui-Kone_Single_Roller_Cone_HDD_Bits.html
Qui-Klaw_Claw_Bits.html
Shovelhead_Directional_HDD_Drill_Bit.html
Tri-Cone_Drill_Bits.html
Directional_Diamond_HDD_PDC_Bits_HDD.html
REAMERSHDD_Back_Reamers___Hole_Openers.html
BOLT-ON BITSBolt_on_HDD_Bits_and_Blades.html
L.I.T.H. LEAVE IN THE HOLEHDD_Tools_and_Tooling.html
ROCK BITSRok-Klaw_HDD_Rock_Bits.html
SINGLE CONEQui-Kone_Single_Roller_Cone_HDD_Bits.html
CLAW BITSQui-Klaw_Claw_Bits.html
SHOVELHEADShovelhead_Directional_HDD_Drill_Bit.html
TRI-CONETri-Cone_Drill_Bits.html
PDC BITSDirectional_Diamond_HDD_PDC_Bits_HDD.html
HOMEDrillhead_Inc._HDD_Tools_Horizontal_Directional_Drill_Bits_and_Tooling.html
PRODUCTSChoose_The_Right_Bit.html
ABOUT USAbout_Drillhead_HDD.html
CONTACT USContact_Us.html
REBUILD SERVICEPDC_Rebuild_Service.html
CUSTOM TOOLINGHDD_Tools_and_Tooling.html
FOR DRILLERS WHO PREFER TO REBUILD THEIR OWN HOLE OPENERS, WE OFFER PREMIUM BIT SECTIONS (THIRDS) OF ALL SIZES. AMERICAN MADE. OILFIELD QUALITY. NEW OR PREMIUM RERUN. IN STOCK. CALL FOR PRICING OR CLICK HEREBIT_THIRDS.html
BIT SECTIONS (THIRDS)BIT_THIRDS.html

HDD Rock Reamers, HDD Hole Openers or Split Bit Reamers....whatever you call them, DrillHead builds them.

HDD ROCK REAMERS / HDD HOLE OPENERS

Rock reaming is tough, you need a tough tool to get the job done right!
DrillHead HDD Hole Openers are made with the highest grade components. We can custom match the cones of the hole opener to your specific drilling conditions.


•  6” - 64” Rock Reamers available
•  Any size HDD Hole Opener available for any HDD drill
•  Custom hole openers usually built within 2-3 business days

•  Connection(s) available to fit any HDD drill pipe or adapter
•  3, 4, 5, 6, 7 and 8+ cone options
•  TCI or Mill Tooth to fit your exact drilling needs
•  Carbide teeth on the tailing edge of the tool aid while swabbing



We can build your Hole Opener to cut all the way to the shaft, or

with carbide-covered centering ribs to cut from your pilot hole or

previous bore out to gauge.


COMPETITIVE PRICING UNBEATABLE QUALITY

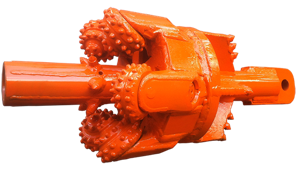

54” 6-Cone Shown - 26" TCI Cones
with 5 1/2” Full Hole Box X Box

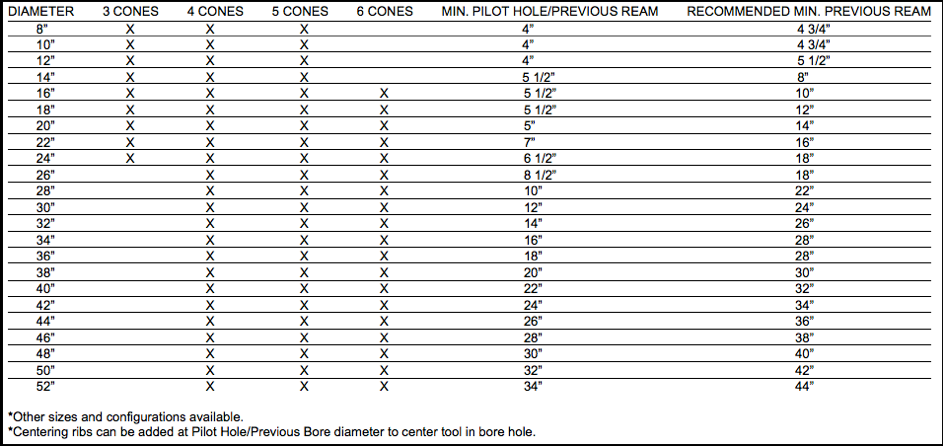

Popular HDD Rock Reamer / Hole Opener Sizes and Configurations

When reaming rock, we recommend opening the hole in multiple passes. We can build your Hole Opener to cut from the reamer shaft all the way to the O.D., but it is often more efficient to enlarge the hole in 4”-8” increments with multiple passes. Example: (18” final hole size) 5”-6” Pilot Hole, followed by a 10” Hole Opener, a 14” Hole Opener and an 18” Hole Opener. In softer rock conditions or with larger drills, it may be possible to step from 5”-6” Pilot Hole, to a 12” Hole Opener and then an 18” Hole Opener. Conditions may sometimes allow going directly from the 5”-6” Pilot Hole, directly to an 18” Hole Opener but this is often slower and may not be possible with smaller drills. 4”-8” staged passes is recommended for efficiency and longer tools life.Contact_Us.html
